Four models to choose from!

AH-DIN (TOTALIZER IN A ¼ DIN ENCLOSURE)
AHC-DIN (CONTROLLER/TOTALIZER IN A ¼ DIN ENCLOSURE)
AH-WM (TOTALIZER IN A WALL MOUNTED ENCLOSURE)
AHC-WM (CONTROLLER/TOTALIZER IN A WALL MOUNTED ENCLOSURE)


Standard Features (AH and AHC Models)
·
12 Digit Non-Resettable cumulative amp/hour/min/second total
· 12 Digit Resettable cumulative amp/hour/min/second total

​· Totalize up to 4 processes into one cumulative total with one meter! (standard 50mV shunt or voltage input)

· One Button Reset!
· EPA Accumulated non-resettable time total
· .000 Amp Hour Resolution (user selectable up to 100A for MIL SPEC applications)
· Supports rectifier shunt sizes from 1A to 30000A (25-200mV).
· Supports a user selectable input. 1-10VDC in lieu of a Shunt.  Truly Universal!
· Blue/White Backlit Display (Great for low light viewing!)
· Permanent memory without batteries
· Corrosion resistant plastic
· Superior Accuracy 1% or better!
· Supports 12-24VDC (2W) Power Input natively and 96-264VAC 1 Phase Input with an included AC module.

· Dimensions: 3.5" X 3.5" X 2.2” (Outside Bezel Dimensions: 3.75" X 3.75")
  (Only 2.2” of depth! 3.1” with terminals!  Beats the competition!)​

Controller Option (AHC Models only)
· Includes two 10A Fused relays for rectifier and or pump control (Beats the competition!)
· Each relay has independent set points/controls.

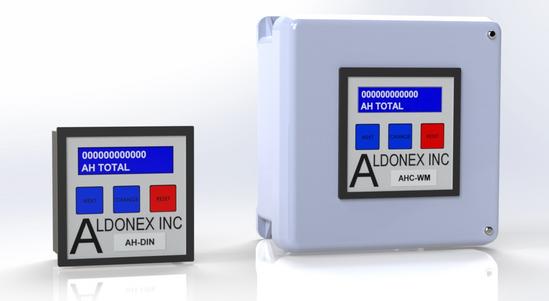

Wall Mount Shown.

1/4 Din Case Shown.

 AMP HOUR/MINUTE/SECOND TOTALIZER AND CONTROLLER​​

AH & AHC Ranges

​· Amp Hours: 10-30,000 Amps Full Scale (No decimal Display)

· Amp Hours: 1-100 Amps Full Scale (Decimal Display xxx.xxx)

· Amp Minutes: 1-500 Amps Full Scale

· Amp Seconds: 1-15 Amps Full Scale

· Input Millivolt Range: 25mV – 199mV

· Input Volt Range: 1.5V - 10.0V
