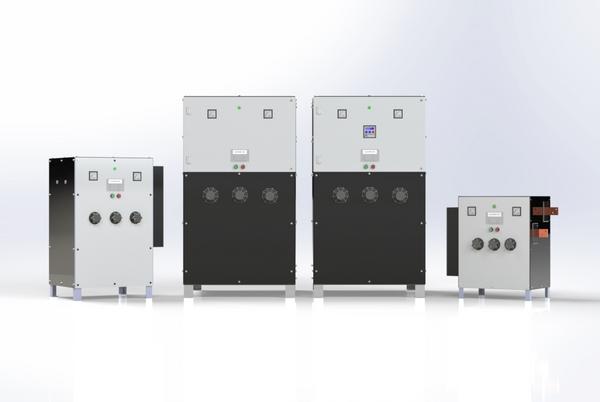

*As Shown

- 4000ADC 0-24VDC

- Powder Coated Steel Cabinet

- Air Cooled

- Self Contained

- Standard Controls

- Autoformer (Output starts at 0VDC)


tapswitch power supplies


Features Include
• Available in Three Phase (208VAC-600VAC 50/60HZ) (higher voltages upon request)
• Applications available up to 250kW (12,000ADC Max)
• 5% Ripple throughout the output range (optional filter resulting in <5% available)
• Can start at 0VDC (optional)
• Air or Water Cooled
• Self-Contained or Remote Controlled
• Current Trip "Limit" circuitry protects the power supply against direct short of the output bus
• Current Trip board is conformal coated (MIL-1-46058 or MIL-V-173)
• All of our power supplies are designed for continuous duty at 40° C (high temp packages available)
• Custom and Modular Designs available
• Manufactured and Developed in the USA


​We can custom build and design a power supply to meet almost any requirements

Options
• Amp Hour/Minute Meter (pump control optional)
• Digital Meters (IP65 Rating. Accuracy is 1% or better)
• Setpoint Meter
• Cut-Off Timer
• Alarm
• PLC Interface (0-5VDC, 0-10VDC, 4-20mA)
• PLC Start/Stop
• Custom Dry Contacts
• Periodic Reversing (Manual or Automatic)
• Filter Choke (reduce AC ripple)
• We welcome custom controls!
